Artemis Arch LED Table Lamp

Architectural Task Lighting with Precision Form

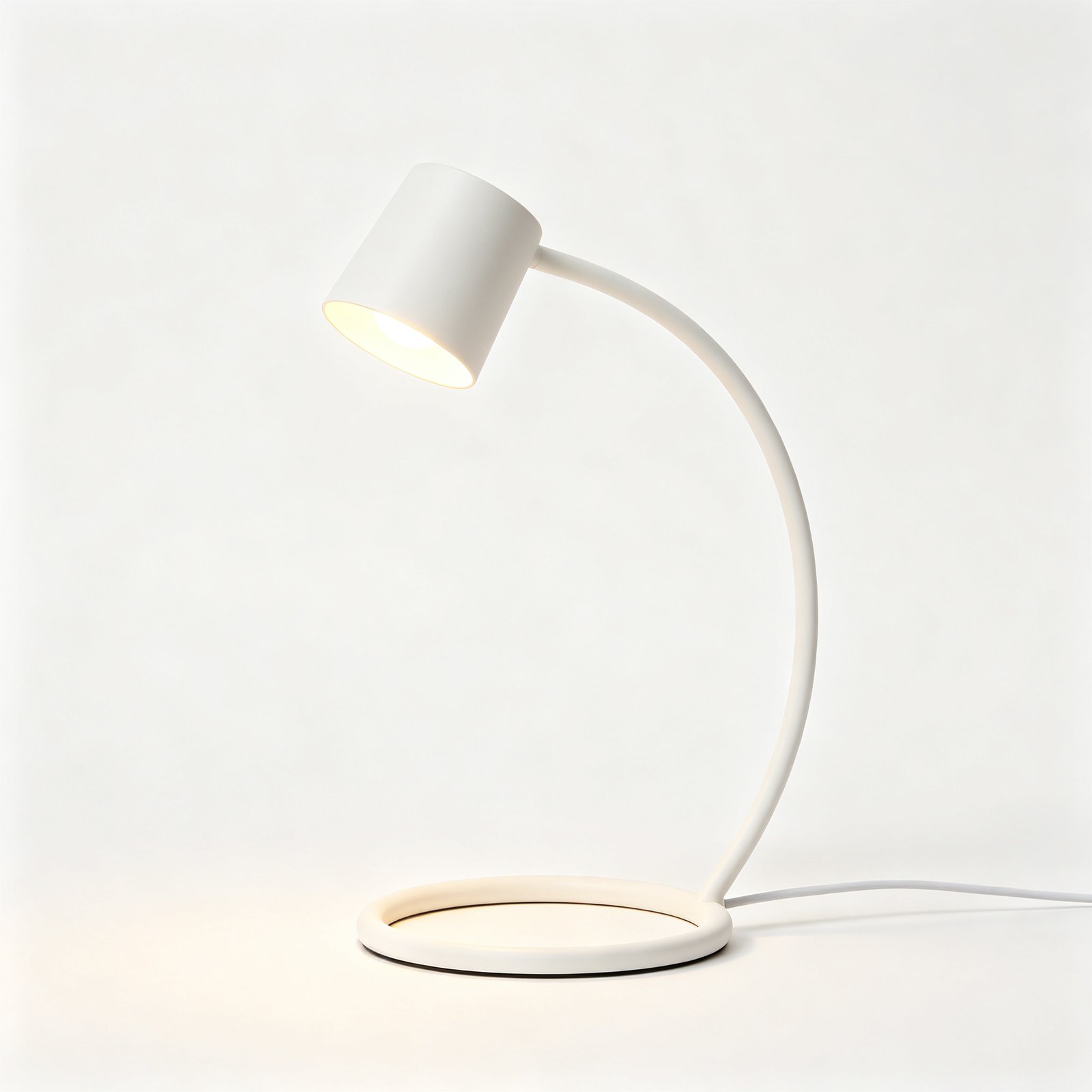

The Artemis Table Lamp is a study in minimal form and maximum function. The continuous arched tube is CNC bent from 0.75-inch diameter steel tubing with a radius tolerance of +/- 0.3mm, creating a graceful curve that positions the cylindrical shade precisely over the work surface. The integrated LED module delivers focused task illumination with high color rendering, while the touch dimmer provides stepless brightness control. The circular base provides stability without taking up desk space.

Technical Specifications

• LED Module: Integrated 6W COB LED, 3000K warm white, CRI 90+, 480 lumens at maximum output
• Optics: Frosted polycarbonate diffuser (90% transmittance), 60-degree beam angle for focused task illumination
• Arch Tube: 0.75-inch (19mm) diameter 6063-T5 aluminum alloy tube, 1.2mm wall thickness, CNC bent to 120mm radius arc, total tube length 24 inches, matte white powder coating (60-80 micron)
• Shade: Cylindrical aluminum shade (2.5 inch diameter, 3 inch height), matte white powder coat exterior, matte white interior for glare control
• Base: Round die-cast zinc alloy base, 6 inch diameter, 0.5 inch height, 2 lbs, matte white powder coat, non-slip silicone pad, integrated LED driver and touch dimmer
• Dimming: Touch-sensitive dimmer on base, stepless adjustment from 5% to 100%, memory function
• Power: AC 100-240V 50/60Hz input, 5-foot white PVC cord
• Flicker: Constant current LED driver with PWM frequency > 3000Hz, flicker-free per IEEE 1789-2015
• Dimensions: 14 inches overall height, 6 inch base diameter, 10 inch maximum reach
• Weight: 3.0 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)
• LED Lifespan: 50,000 hours (L70)

Thermal & Structural Performance

The aluminum arch tube acts as a passive heat sink, conducting heat away from the LED module through the 1.2mm wall and 0.75-inch diameter surface area to the base. Measured LED junction temperature at maximum output: 65C (ambient 25C), well within the 80C maximum rating. The zinc alloy base provides a low center of gravity (1 inch from surface), ensuring stability with the arch extended horizontally. Tilt test on 15-degree incline passed without tipping. The CNC bending process maintains tube roundness within 2% deformation. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+). The touch dimmer uses capacitive sensing technology with 100,000 cycle lifespan.

Construction & Compliance

Metal components are degreased, chromate-conversion treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The polycarbonate diffuser is UV-stabilized and flame-retardant (UL 94 V-0). The integrated LED module is epoxy-sealed for moisture protection (IP20 rated for indoor use).

Integrated LED, non-replaceable. Touch dimmer included. Suitable for desks, nightstands, and side tables.
