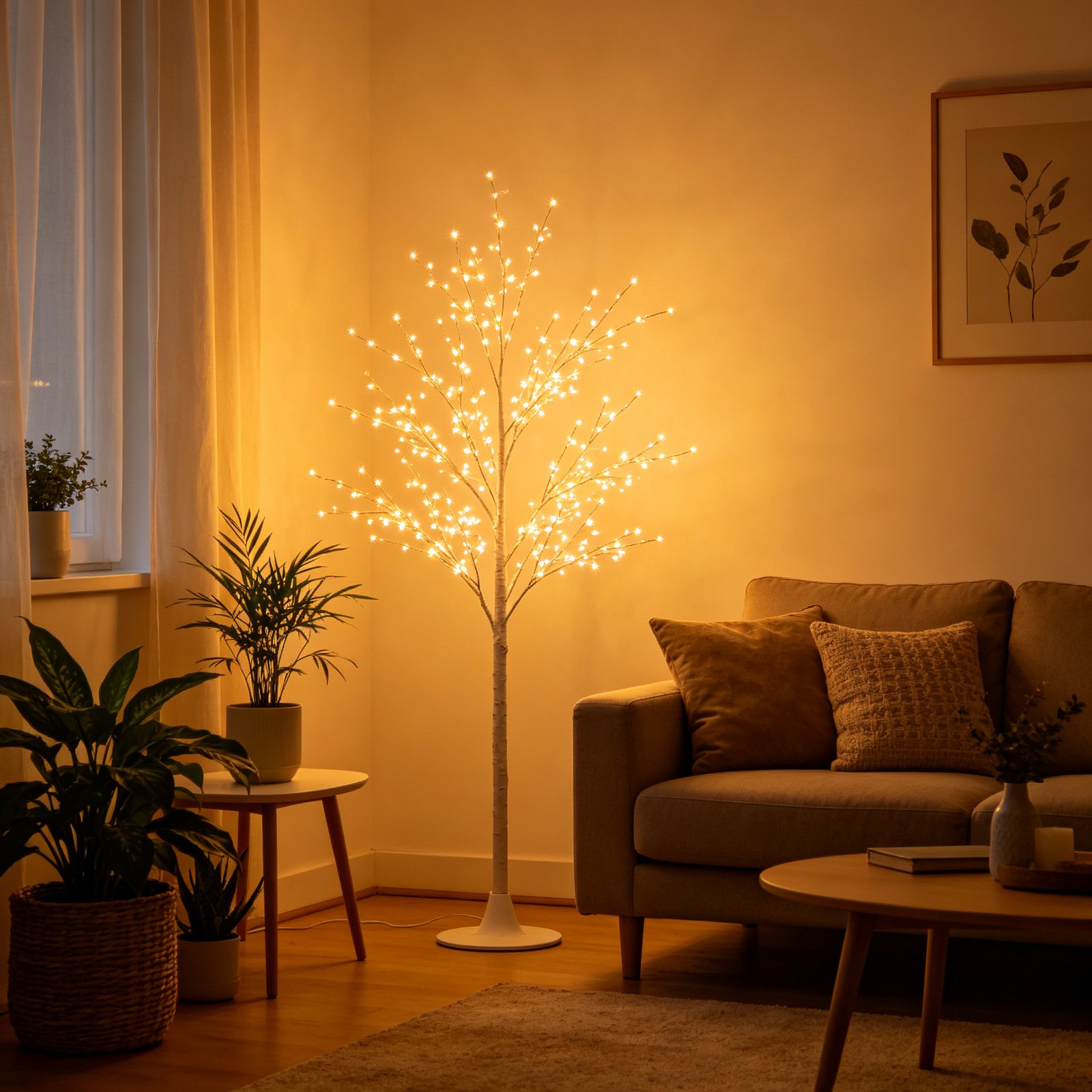

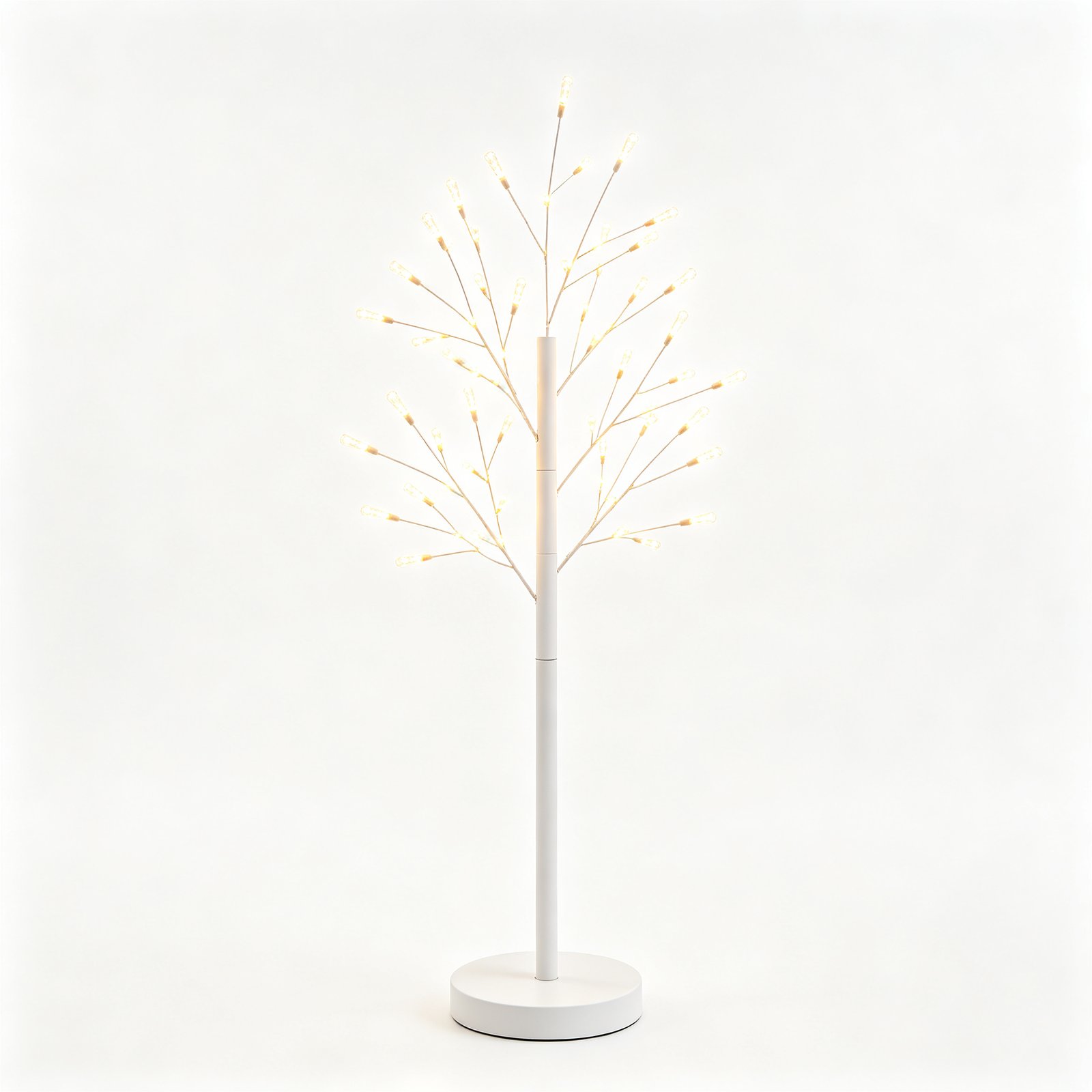

Levi Branch LED Floor Lamp

Biomorphic LED Lighting with Engineered Branch Architecture

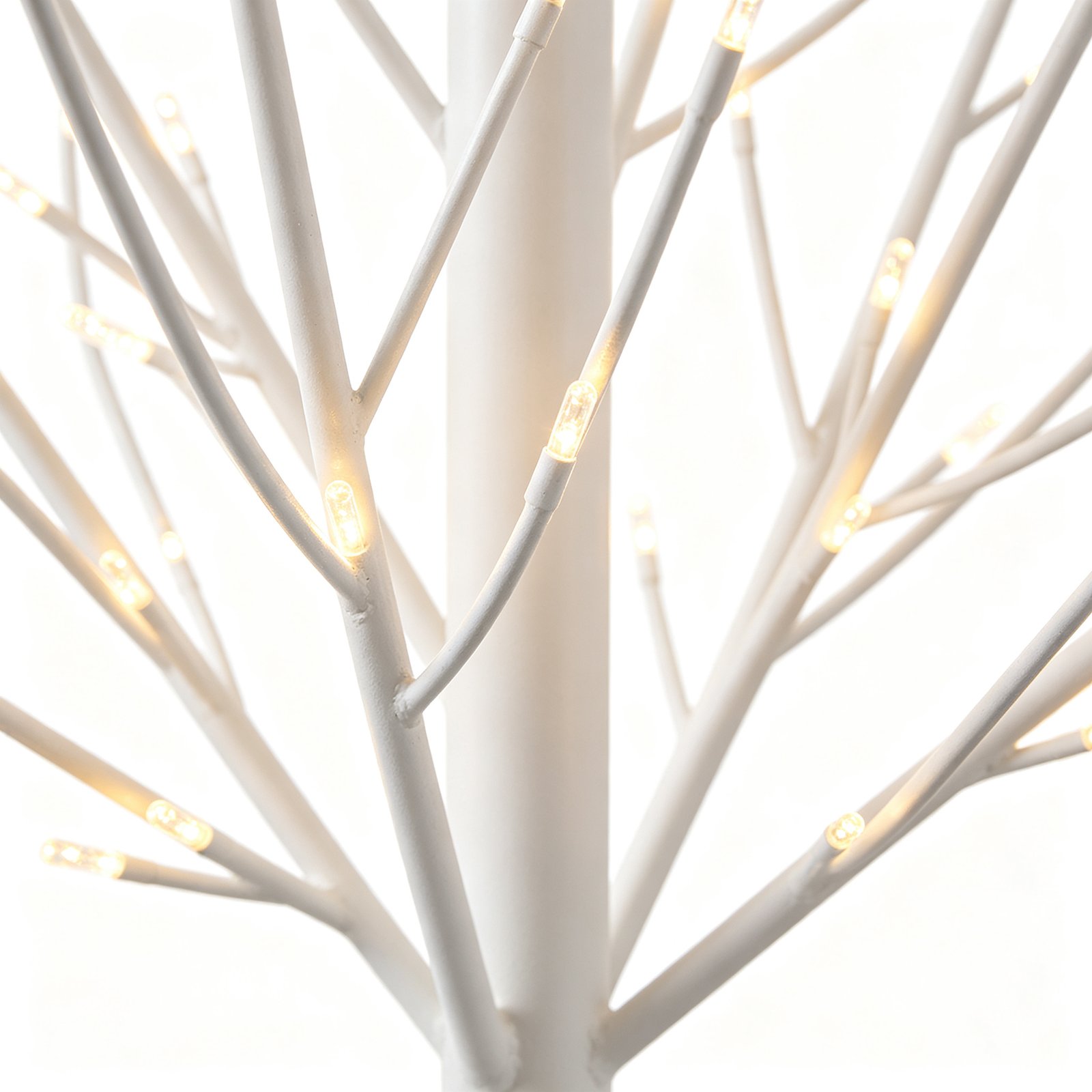

The Levi Floor Lamp reimagines the classic tree lamp through precision engineering. The central pole supports a multi-branch canopy with 72 integrated warm-white LED nodes, each positioned to create a natural, dappled light pattern reminiscent of sunlight through tree branches. The branch structure is CNC-formed from 14-gauge steel wire with precision-welded joints, ensuring consistent geometry across every unit while maintaining the organic, irregular appearance of natural tree growth.

Technical Specifications

• LED Module: 72 integrated 0.06W SMD LEDs, 2700K warm white, CRI 85+, 4.32W total power, 320 lumens
• Optics: Clear epoxy-coated LED nodes with 120-degree beam angle, providing 360-degree ambient illumination
• Central Pole: 16-gauge (1.5mm wall) cold-rolled steel tube, 0.75 inch diameter, matte white powder coating (60-80 micron)
• Branch Structure: 14-gauge (2.0mm) steel wire branches, CNC-formed and TIG welded, 36 primary branches with 72 LED nodes, matte white powder coat
• Base: Round die-cast zinc alloy base, 10 inch diameter, 1 inch height, 4 lbs, matte white powder coat, non-slip silicone pad, integrated LED driver (12V DC, 0.5A)
• Dimming: Touch-sensitive dimmer on base, stepless adjustment from 5% to 100%, memory function
• Power: AC 100-240V 50/60Hz input, 6-foot white PVC cord with inline touch dimmer
• Flicker: Constant current LED driver with PWM frequency > 3000Hz, flicker-free per IEEE 1789-2015
• Dimensions: 60 inches overall height, 10 inch base diameter, 24 inch maximum branch spread
• Weight: 6.0 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)
• LED Lifespan: 50,000 hours (L70)

Thermal & Structural Performance

The steel branch structure acts as a distributed passive heat sink, dissipating LED heat through the 2.0mm wire cross-section and extensive surface area. Measured LED junction temperature at maximum output: 58C (ambient 25C), well within the 75C maximum rating. The central pole and branch assembly are structurally tested to 5 lbs lateral load at the top without permanent deformation. The weighted zinc base provides a low center of gravity (4 inches from surface), ensuring stability; tilt test on 15-degree incline passed without tipping. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+).

Construction & Compliance

Steel components are degreased, phosphate-treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The integrated LED nodes are epoxy-sealed for moisture protection (IP20 rated for indoor use). The touch dimmer uses capacitive sensing technology with 100,000 cycle lifespan.

Integrated LED, non-replaceable. Touch dimmer included. Suitable for living rooms, bedrooms, and decorative ambient lighting.
