Squiggle Curved LED Floor Lamp

Curvilinear LED Lighting with Precision Form

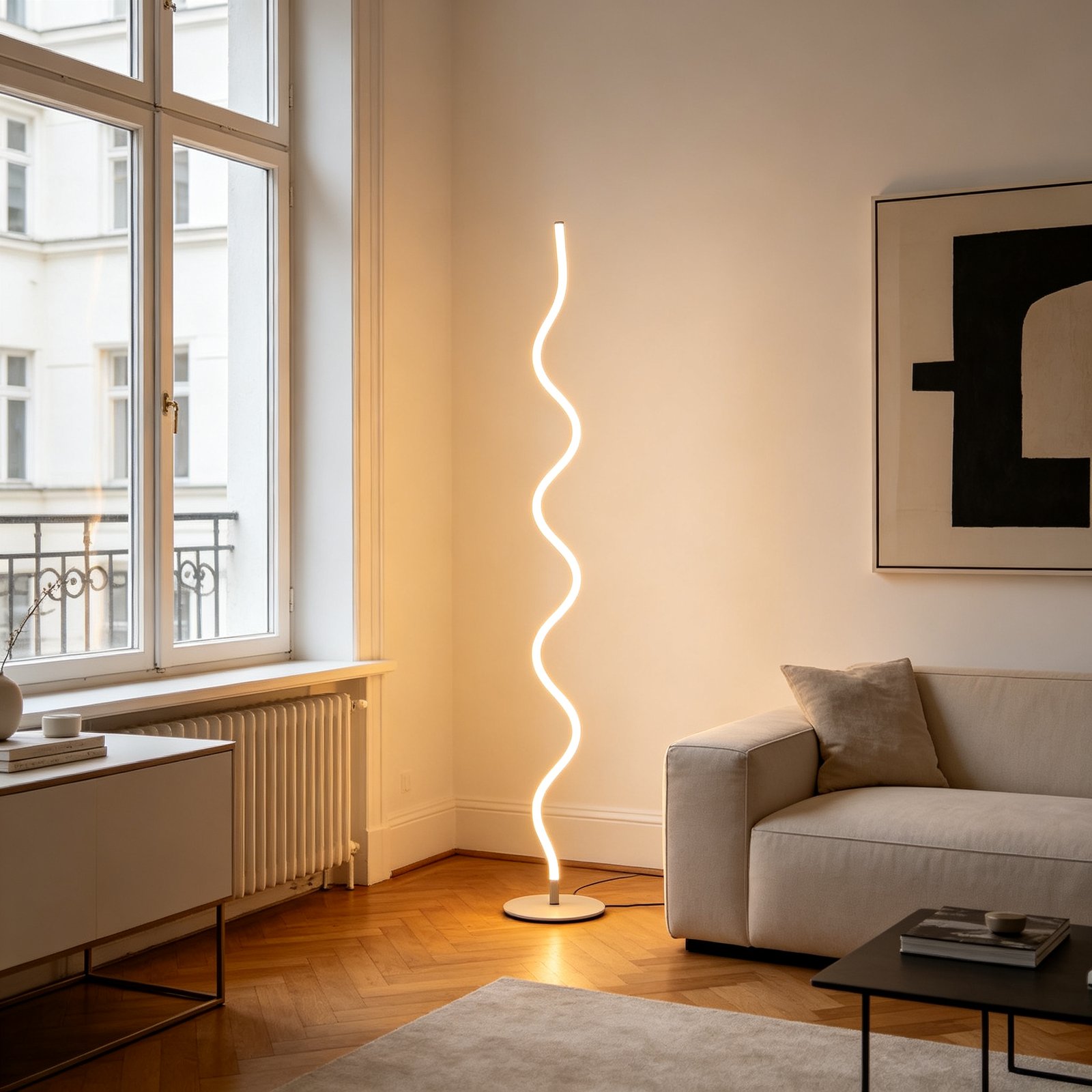

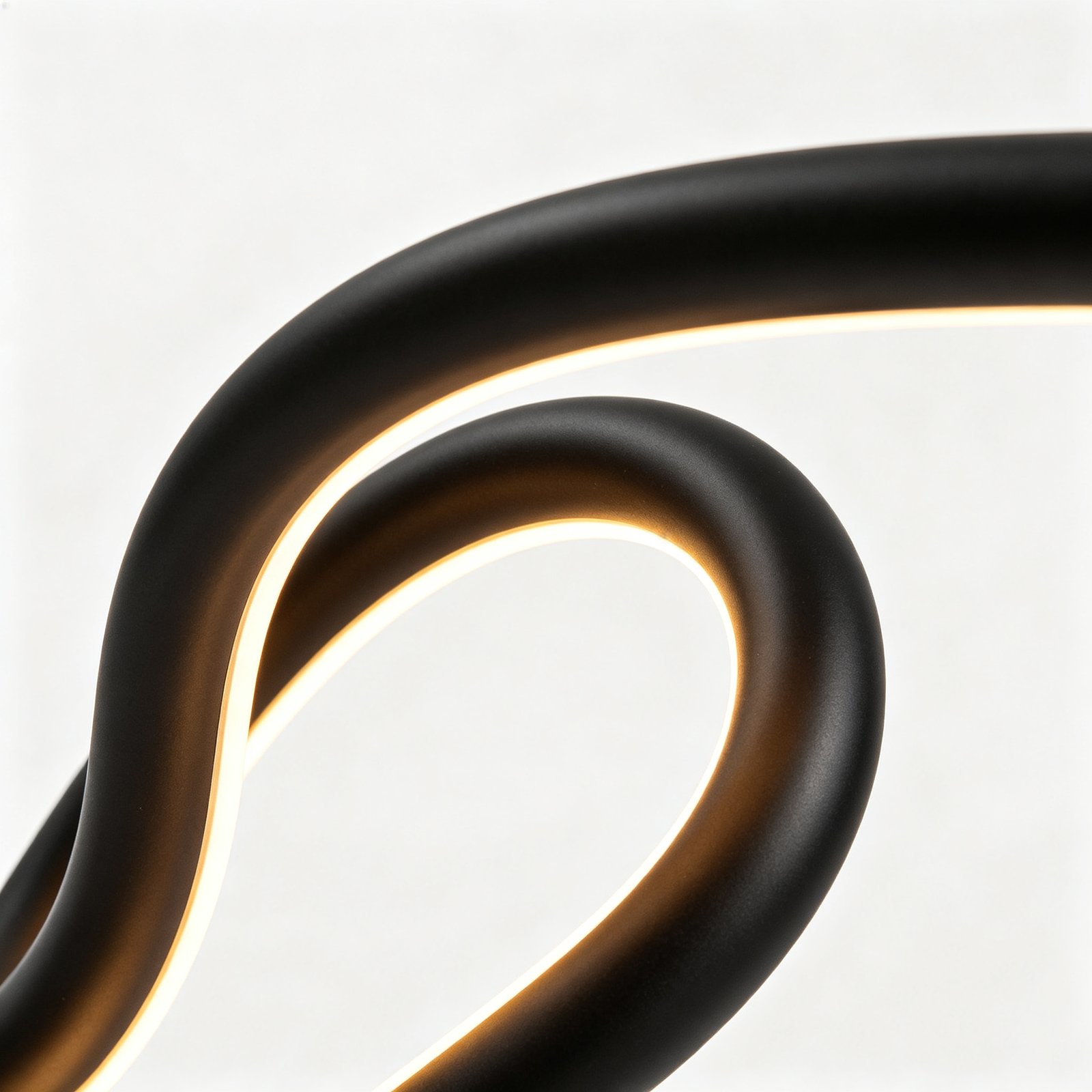

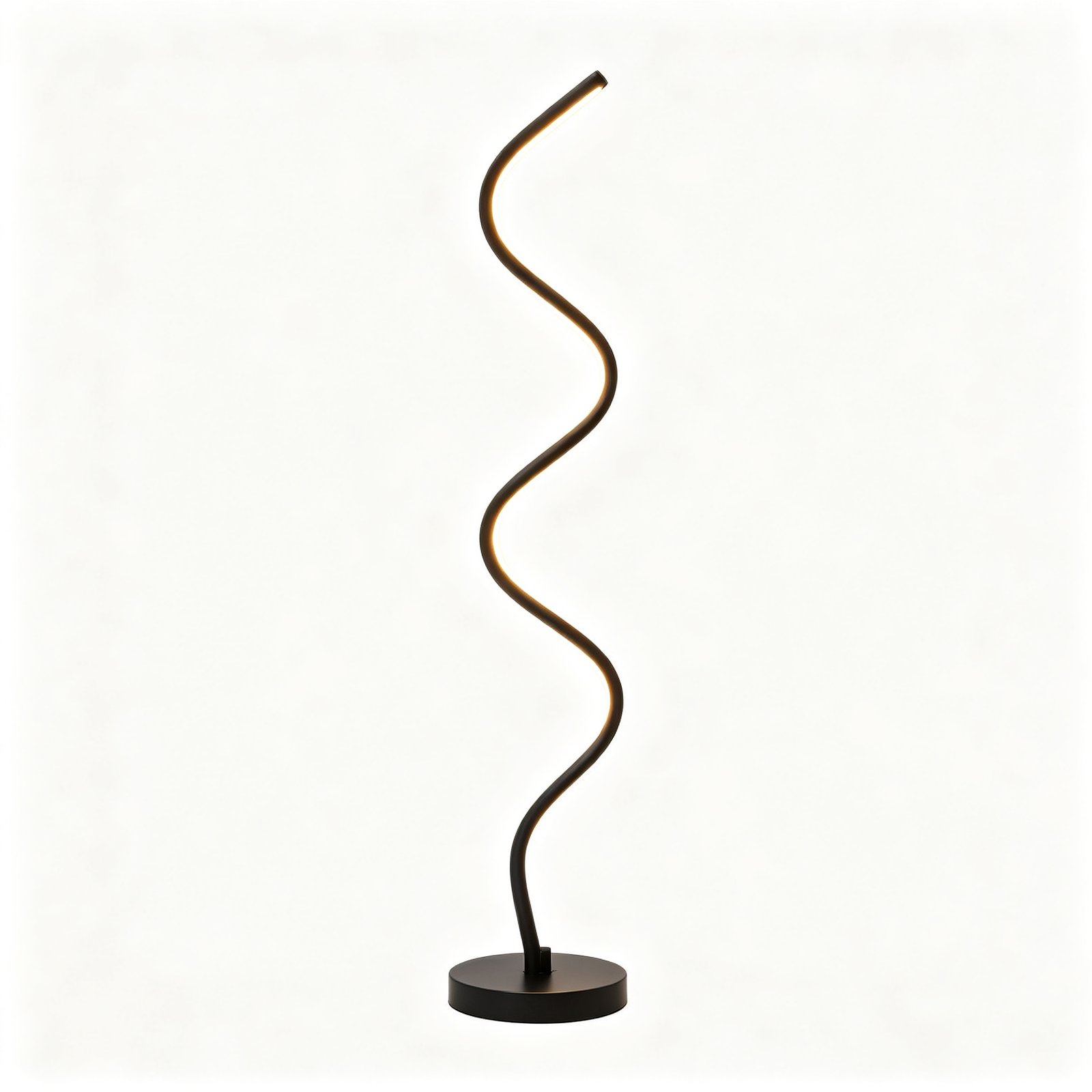

The Squiggle Floor Lamp is a study in controlled organic form. The continuous S-curve tube is CNC bent from 1-inch diameter aluminum alloy with a radius tolerance of +/- 0.3mm, ensuring a smooth, consistent waveform across every unit. An integrated high-CRI LED strip runs the full length of the tube’s inner curve, delivering warm, glare-free ambient illumination that highlights the sculptural form while providing functional room lighting.

Technical Specifications

• LED Module: Integrated 2835 SMD LED strip, 60 LEDs/meter, 2700K warm white, CRI 90+, 12W total power, 960 lumens
• Optics: Milk-white silicone diffuser (Shore A 40), 92% transmittance, providing 180-degree beam angle along the tube’s inner curve
• Tube: 6063-T5 aluminum alloy, 1-inch (25.4mm) diameter, 1.2mm wall thickness, CNC bent to continuous S-curve (total tube length: 52 inches), matte black powder coating (60-80 micron)
• Base: Round die-cast zinc alloy base, 8 inch diameter, 1 inch height, 3.5 lbs, matte black powder coat, non-slip silicone pad, integrated LED driver (12V DC, 1A)
• Dimming: Touch-sensitive dimmer on base, stepless adjustment from 5% to 100%, memory function retains last setting
• Power: AC 100-240V 50/60Hz input, 6-foot black PVC cord with inline touch dimmer
• Flicker: Constant current LED driver with PWM frequency > 3000Hz, flicker-free per IEEE 1789-2015
• Dimensions: 63 inches overall height, 8 inch base diameter, 10 inch maximum horizontal width
• Weight: 6.5 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)
• LED Lifespan: 50,000 hours (L70)

Thermal & Structural Performance

The aluminum tube acts as a passive heat sink, dissipating LED heat through the 1.2mm wall and 1-inch diameter surface area. Measured LED junction temperature at maximum output: 68C (ambient 25C), well within the 80C maximum rating. The CNC bending process maintains tube roundness within 2% deformation, ensuring the LED strip adheres uniformly to the inner curve for consistent light output. The weighted zinc base provides a low center of gravity (4 inches from surface), ensuring stability; tilt test on 15-degree incline passed without tipping. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+).

Construction & Compliance

Aluminum components are degreased, chromate-conversion treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The silicone diffuser is UV-stabilized to prevent yellowing and is rated for continuous operation at 80C.

Integrated LED, non-replaceable. Touch dimmer included. Suitable for living rooms, bedrooms, and modern commercial spaces.
