Trilage Three-Tier Floor Lamp

Triple-Layer Illumination System

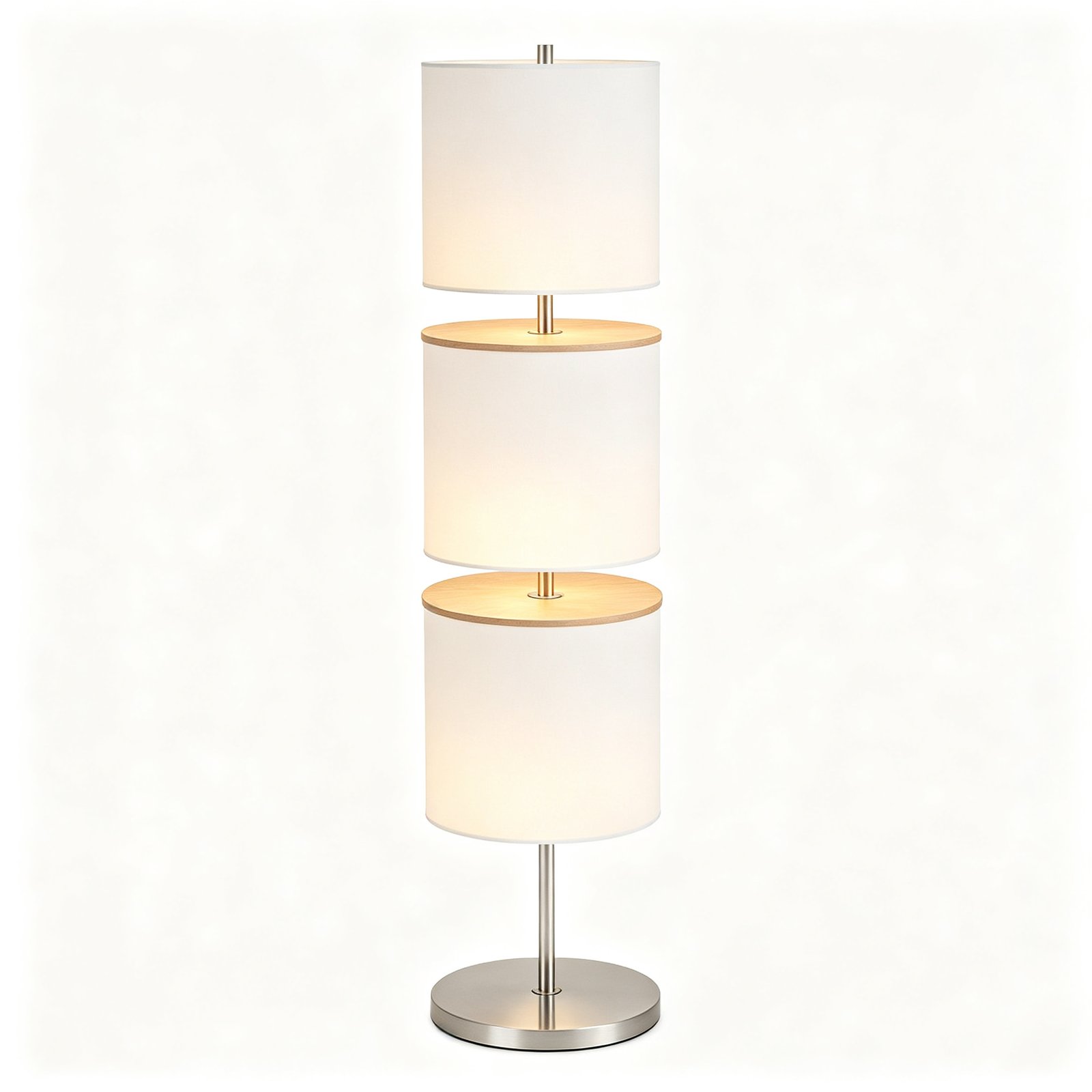

The Trilage Floor Lamp employs a unique three-tier stacked shade architecture, delivering three independent zones of diffused light from a single fixture. Each cylindrical shade operates at a distinct height, creating a layered lighting effect that eliminates harsh shadows and provides uniform ambient coverage.

Engineering Specifications

• Shade Configuration: Three stacked 10-inch diameter cylindrical shades, each with 8-inch height
• Material Composition: Outer shade = 100% linen fabric; inner ring = natural oak veneer MDF; pole = brushed nickel plated steel
• Electrical: Three E26 medium-base sockets, independently wired, 3-way rotary switch (1-on, 2-on, all-on), max 60W per socket
• Dimensions: 62 inches overall height, 10-inch shade diameter, 12-inch diameter weighted steel base
• Weight: 8.5 lbs (base weighted for stability)
• Cord: 72-inch clear SVT cord, polarized plug, inline 3-way switch

Light Distribution Analysis

At full brightness with three 800-lumen LED bulbs (2700K), the Trilage delivers approximately 2400 total lumens with a measured illuminance of 180 lux at 3 feet and 65 lux at 6 feet. The stacked design creates a vertical light gradient, with the top shade providing ceiling wash, the middle shade delivering eye-level ambient, and the bottom shade casting downward task illumination.

Construction & Compliance

UL listed for dry locations. All electrical components meet NEC standards. The brushed nickel plating undergoes a 3-layer process (copper undercoat, nickel deposit, clear lacquer seal) for corrosion resistance. Assembly requires no tools and is completed in under 5 minutes via a threaded pole connection system.

Bulbs not included. Recommended: 3x 60W equivalent warm white LED bulbs.
