Ambience Pro Replacement Solar Panel (5W)

High-Efficiency Replacement Solar Panel for Ambience Pro String Lights

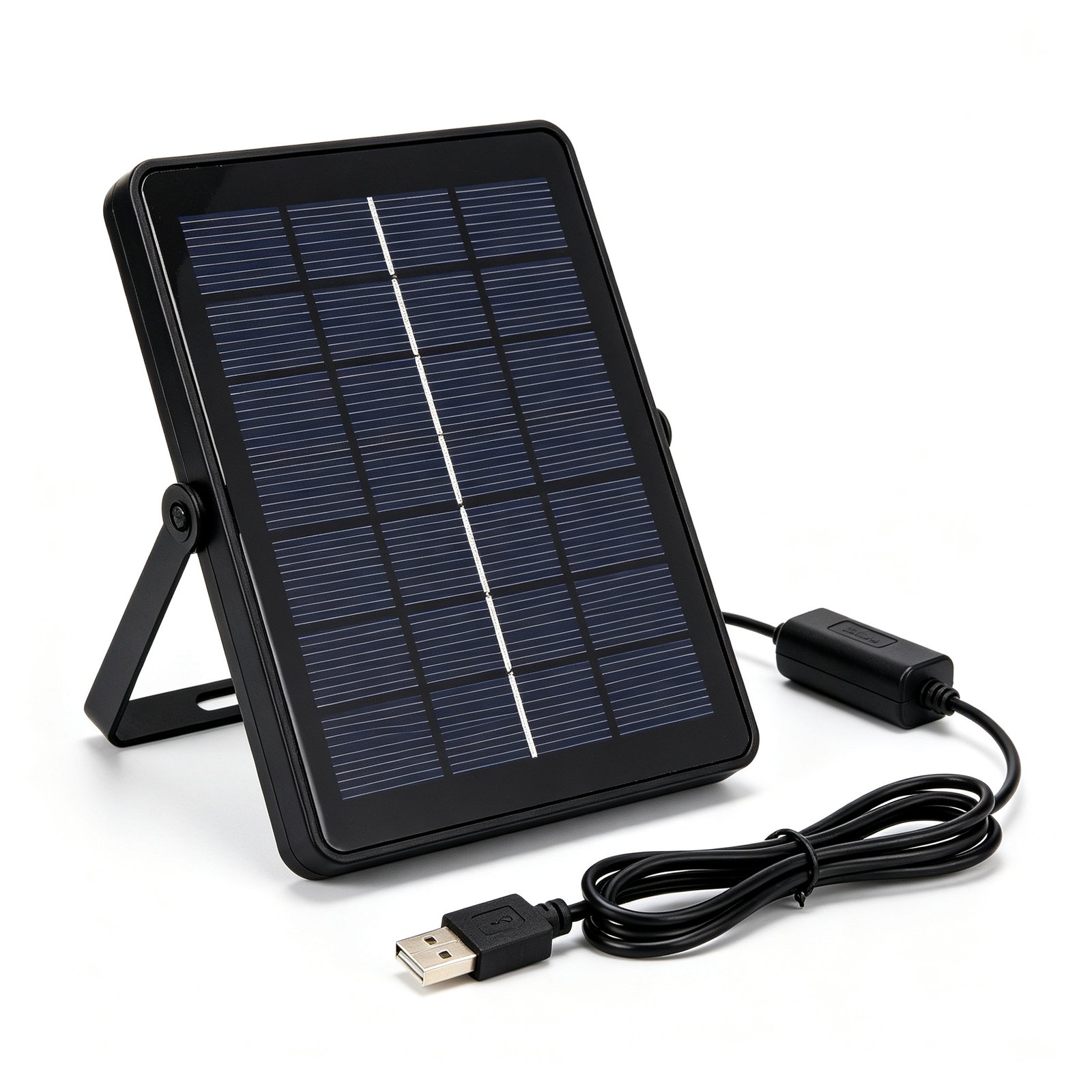

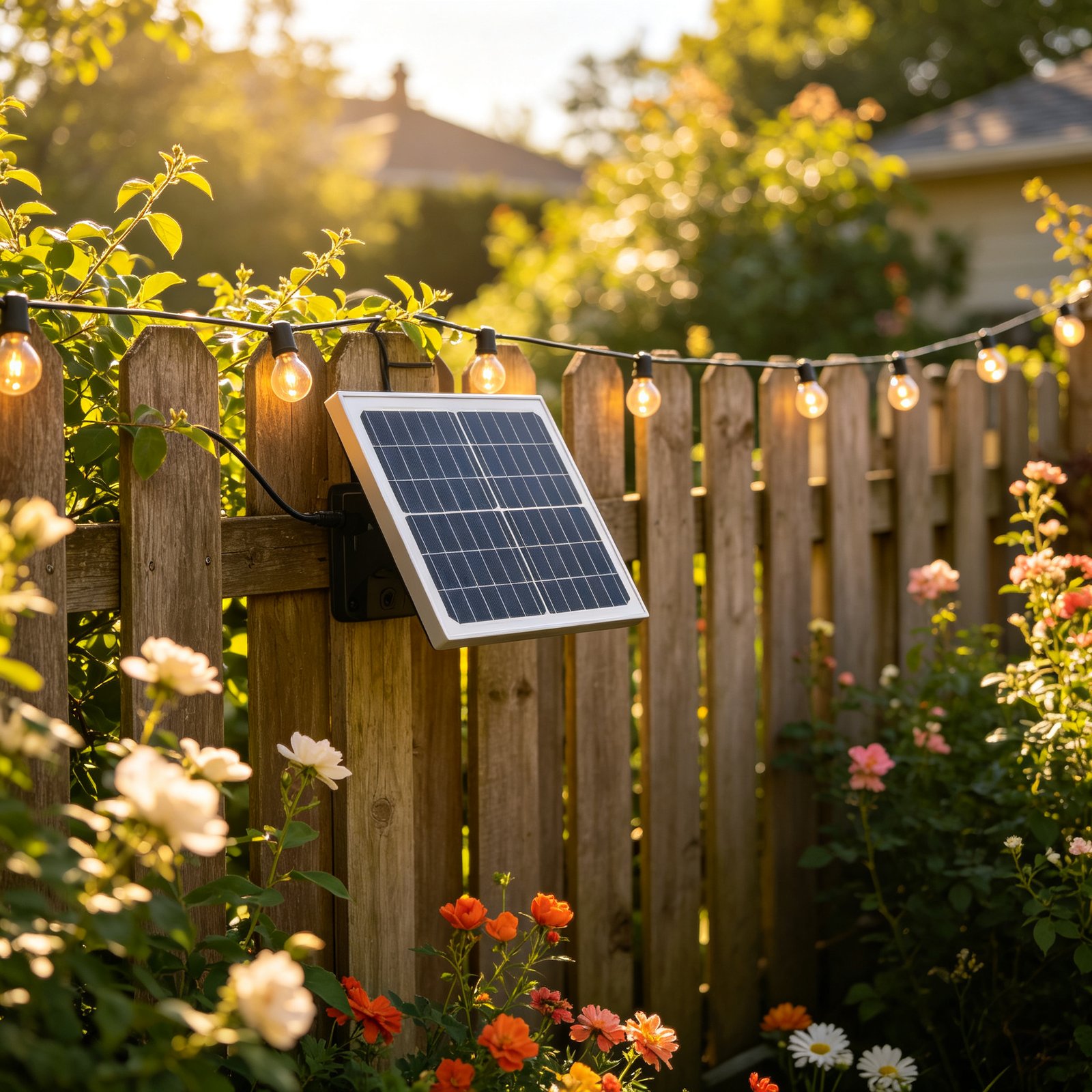

The Ambience Pro Replacement Solar Panel is engineered to restore or upgrade the solar charging capability of your Ambience Pro outdoor string lights. Featuring monocrystalline silicon photovoltaic cells with 22% conversion efficiency, this panel delivers reliable charging performance even in partial sunlight conditions. The weatherproof housing and adjustable mounting bracket ensure durable outdoor installation, while the integrated charge controller protects the connected battery from overcharging and deep discharge.

Technical Specifications

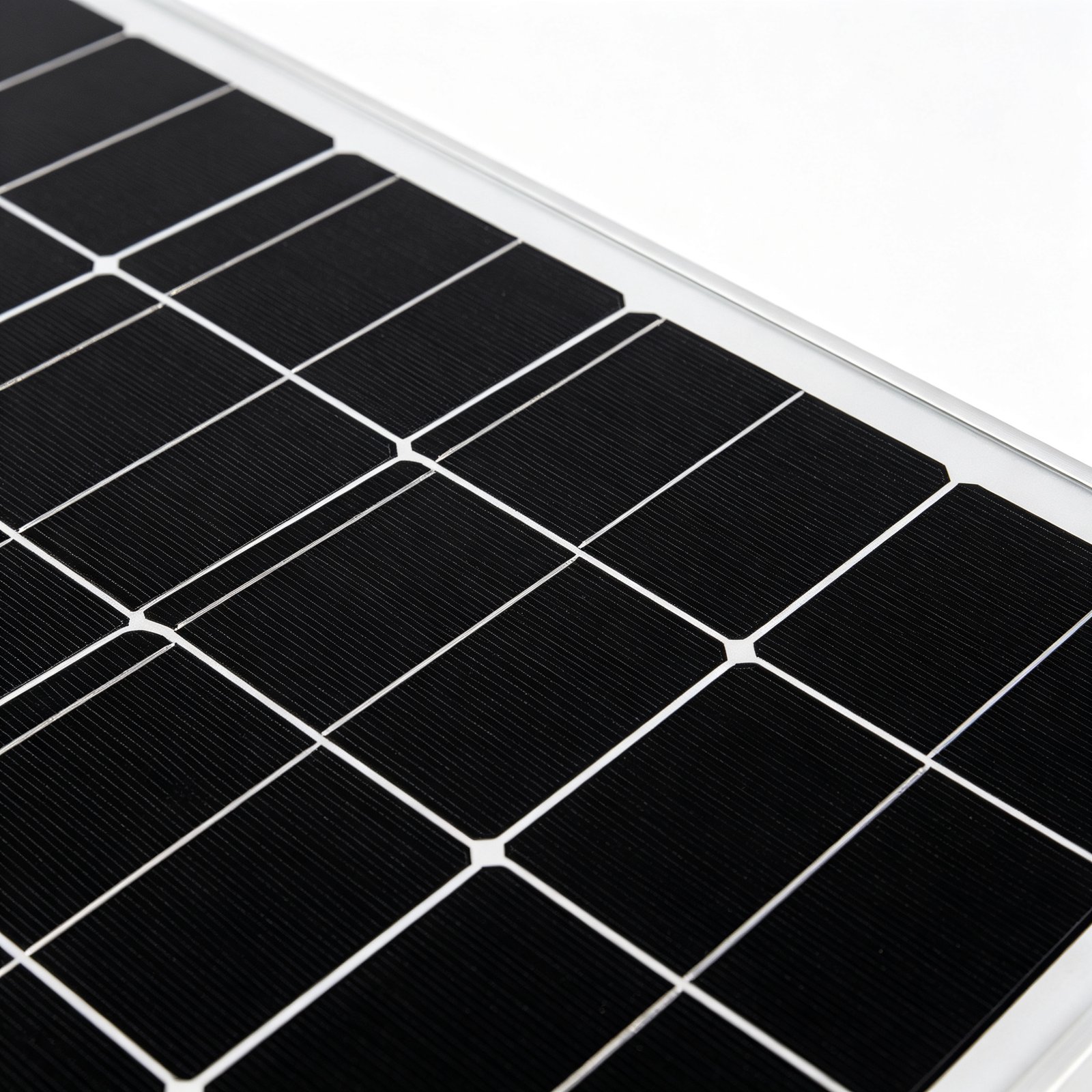

• Solar Cell Type: Monocrystalline silicon (PERC – Passivated Emitter and Rear Cell), 156mm x 156mm cells, 36 cells in series (6×6 grid)
• Rated Power: 5W (STC: 1000 W/m2 irradiance, 25C cell temperature, AM1.5 spectrum)
• Conversion Efficiency: 22% (cell-level), 18% (module-level, including losses)
• Open-Circuit Voltage (Voc): 7.2V DC
• Maximum Power Voltage (Vmp): 6.0V DC
• Short-Circuit Current (Isc): 0.95A
• Maximum Power Current (Imp): 0.83A
• Operating Temperature: -4F to 149F (-20C to 65C)
• Temperature Coefficient: -0.38%/C (power), -0.32%/C (voltage)
• Charge Controller: Integrated PWM (Pulse Width Modulation) charge controller, 6V output, overcharge protection (cutoff at 6.8V), deep discharge protection (reconnect at 5.5V), reverse current protection diode
• Output Connector: USB-A female connector (5V 1A regulated output), 6-foot weatherproof cable
• Frame: Anodized aluminum alloy frame (6063-T5), corrosion resistant, 0.8mm wall thickness
• Cover: Tempered low-iron glass, 3.2mm thickness, 91% light transmittance, anti-reflective coating
• Backsheet: TPT (Tedlar-Polyester-Tedlar) backsheet, UV resistant, moisture barrier
• Encapsulant: EVA (Ethylene Vinyl Acetate) film, UV stabilized, 0.5mm thickness
• Mounting Bracket: Adjustable steel bracket with powder-coated black finish, 0-90 degree tilt angle, includes mounting hardware (screws and wall plugs)
• Dimensions: 7.9 x 6.3 x 0.6 inches (panel), 9.8 x 7.1 x 1.2 inches (with bracket)
• Weight: 1.1 lbs (500g)
• Ingress Protection: IP65 (dust tight, water jets resistant)

Performance & Charging

Under standard test conditions (1000 W/m2, 25C), the panel delivers 5W of power at 6V/0.83A. In typical outdoor conditions (500-800 W/m2 average irradiance during daylight hours), the panel produces 2.5-4W of usable charging power. A fully discharged 3.7V 2000mAh lithium-ion battery (7.4Wh) can be charged in approximately 2-3 hours of direct sunlight. The integrated PWM charge controller ensures efficient charging across varying light conditions, with three charging phases: bulk (constant current), absorption (constant voltage), and float (trickle charge). The panel is designed to charge the battery even on cloudy days, albeit at a reduced rate (approximately 20-30% of full sun output). The reverse current protection diode prevents the battery from discharging through the panel at night.

Construction & Compliance

The panel is constructed using lamination technology: EVA encapsulant film is layered between the tempered glass front and TPT backsheet, with the solar cell string embedded in the EVA. The laminate is cured in a vacuum laminator at 140C for 15 minutes, ensuring complete encapsulation and eliminating air bubbles. The anodized aluminum frame provides structural rigidity and corrosion resistance, tested per ASTM B117 (salt spray: > 1000 hours without corrosion). The panel is IEC 61215 certified (crystalline silicon terrestrial photovoltaic modules – design qualification and type approval) and IEC 61730 certified (photovoltaic module safety qualification). RoHS compliant. The USB output is compatible with most 5V USB-powered devices, including the Ambience Pro string light battery pack.

Replacement solar panel for Ambience Pro string lights. Compatible with most 5V USB-powered solar string lights. Mounting hardware included. USB cable is 6 feet long. For outdoor use only. Do not submerge in water. Clean panel surface periodically with soft cloth and mild detergent to maintain optimal light absorption. 1-year limited warranty.
