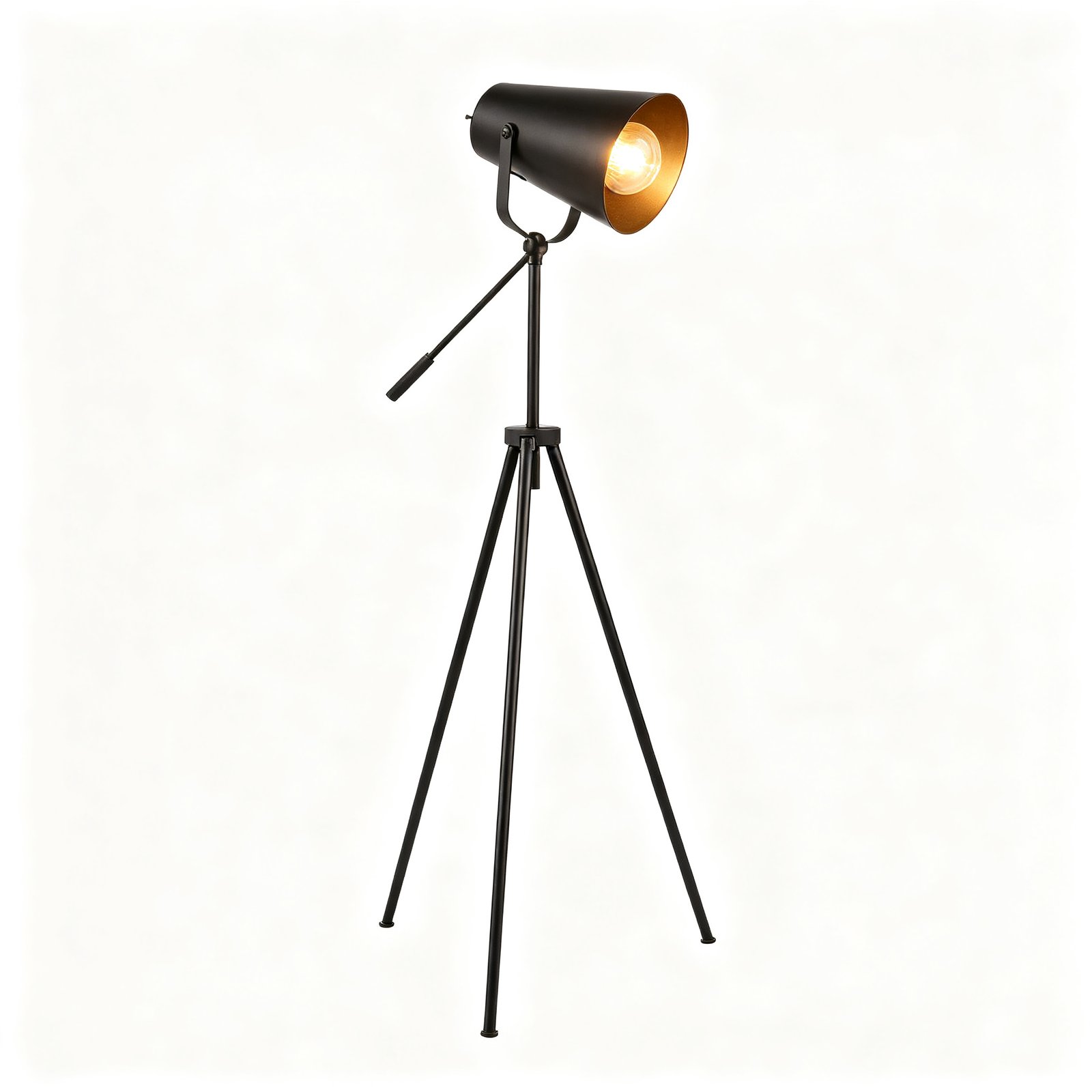

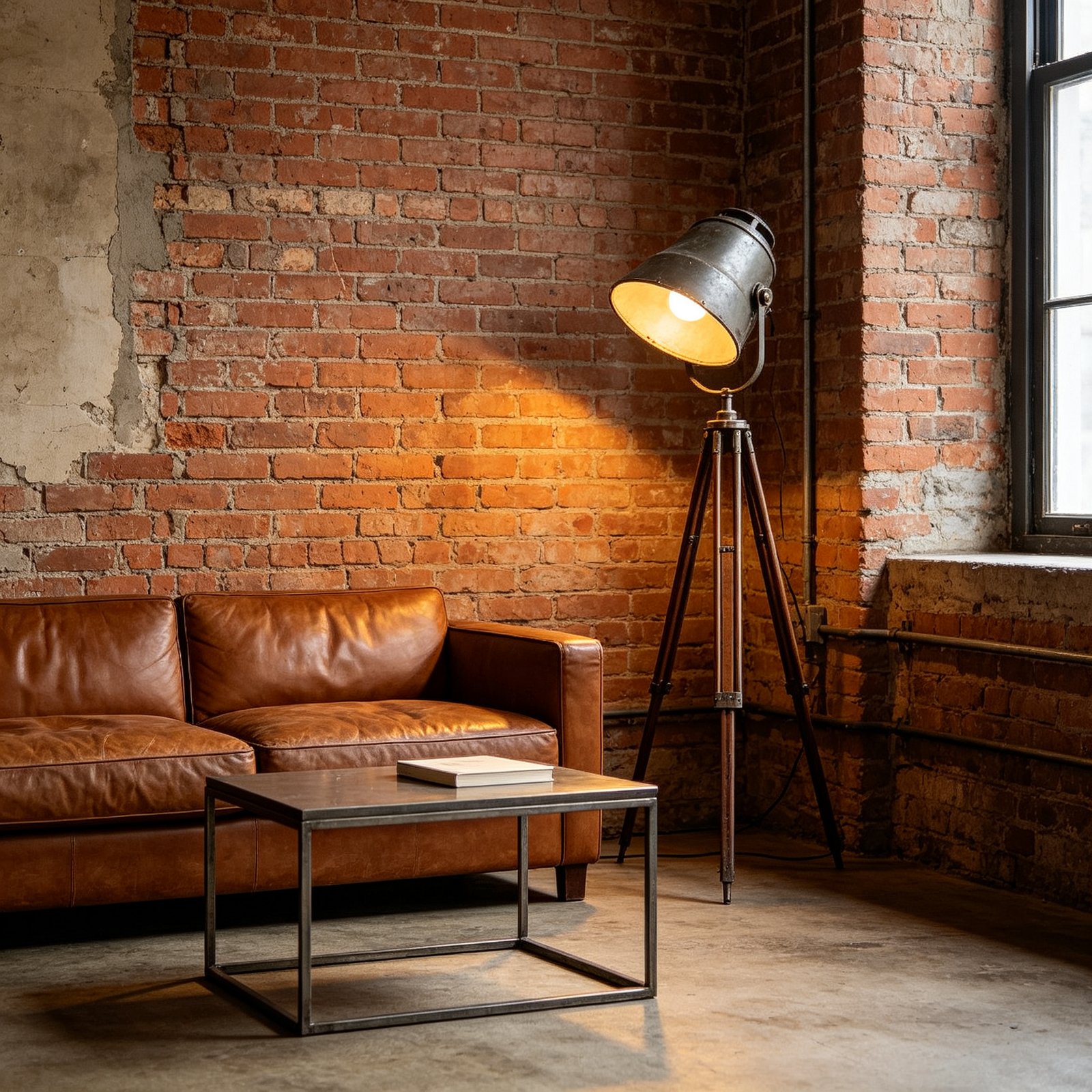

Carter Industrial Tripod Floor Lamp

Industrial Task Lighting with Precision Engineering

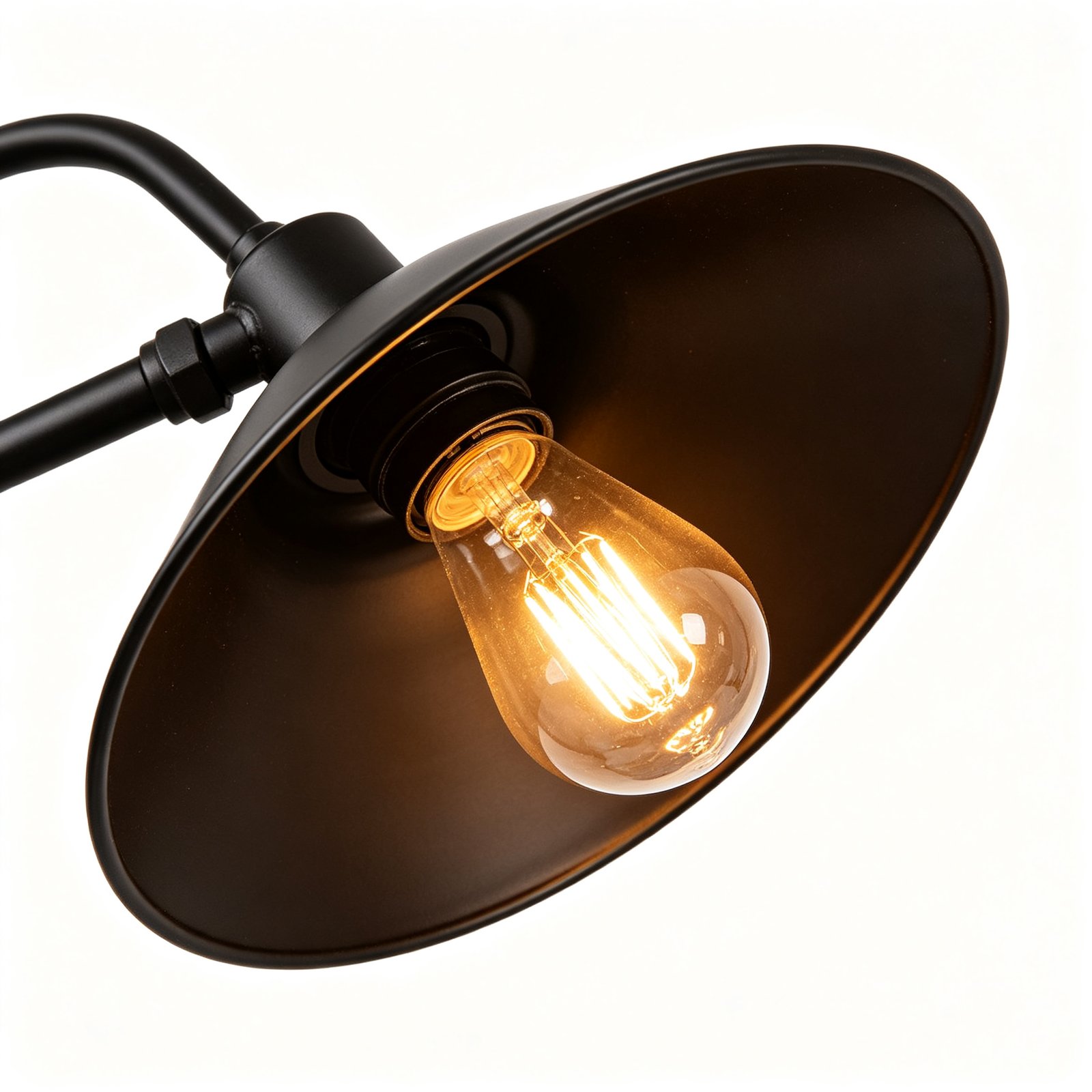

The Carter Floor Lamp draws from mid-century industrial workshop lighting, re-engineered for modern residential use. The tripod base is constructed from 16-gauge cold-rolled steel tubing with precision-machined hinge joints, providing a stable, adjustable foundation. The conical shade is deep-drawn from 18-gauge steel with a matte black powder-coat interior to maximize light reflection and minimize glare. The exposed Edison-style socket adds industrial character while accepting standard E26 bulbs.

Technical Specifications

• Socket: E26 medium base, porcelain socket with aluminum shell, max 100W incandescent or 15W LED
• Shade: Deep-drawn 18-gauge (1.0mm) cold-rolled steel conical shade, 8 inch diameter, 10 inch height, matte black powder coat exterior, matte black interior for glare control
• Tripod Base: 16-gauge (1.5mm wall) cold-rolled steel tube legs, 0.75 inch diameter, precision-machined steel hinge joints with friction lock, adjustable leg span from 18 to 24 inches, rubber feet
• Arm & Joint: 14-inch adjustable steel arm with two-axis pivot joint (vertical tilt +/- 90 degrees, horizontal rotation 360 degrees), friction lock knob with brass insert
• Finish: Matte black powder coating (60-80 micron thickness), cured at 180C for 20 minutes, ASTM D3359 cross-hatch adhesion rating 4B+
• Switch: Inline on/off foot switch on cord, 3 feet from base
• Power: AC 120V 60Hz, 8-foot black PVC cord, polarized plug
• Dimensions: 58-66 inches adjustable height, 18-24 inch tripod base span, 14 inch arm reach
• Weight: 8.5 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)

Structural & Thermal Performance

The tripod base provides a wide, stable footprint with a low center of gravity (12 inches from surface at minimum span), ensuring stability even with the arm fully extended horizontally. Tilt test on 15-degree incline passed without tipping. The steel shade acts as a passive heat sink, dissipating bulb heat through the 1.0mm wall and 8-inch diameter surface area. Measured shade exterior temperature with 60W incandescent bulb: 52C (ambient 25C), safe to touch after 5 minutes of cooling. The powder coating is heat-resistant to 120C continuous, well within operating temperatures. All steel components are degreased, phosphate-treated, and powder-coated for corrosion resistance.

Construction & Compliance

Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The porcelain socket is rated for 250V/660W and tested per UL 496. The polarized plug ensures proper grounding orientation. Rubber feet on tripod legs protect floors and prevent slipping. The friction lock joints are rated for 10,000 adjustment cycles without loss of holding torque.

Bulb not included. Recommended: 60W equivalent warm white Edison-style LED bulb. Assembly required (tripod leg attachment).
