Nova Arc Dome Floor Lamp

Architectural Arc Lighting with Precision Engineering

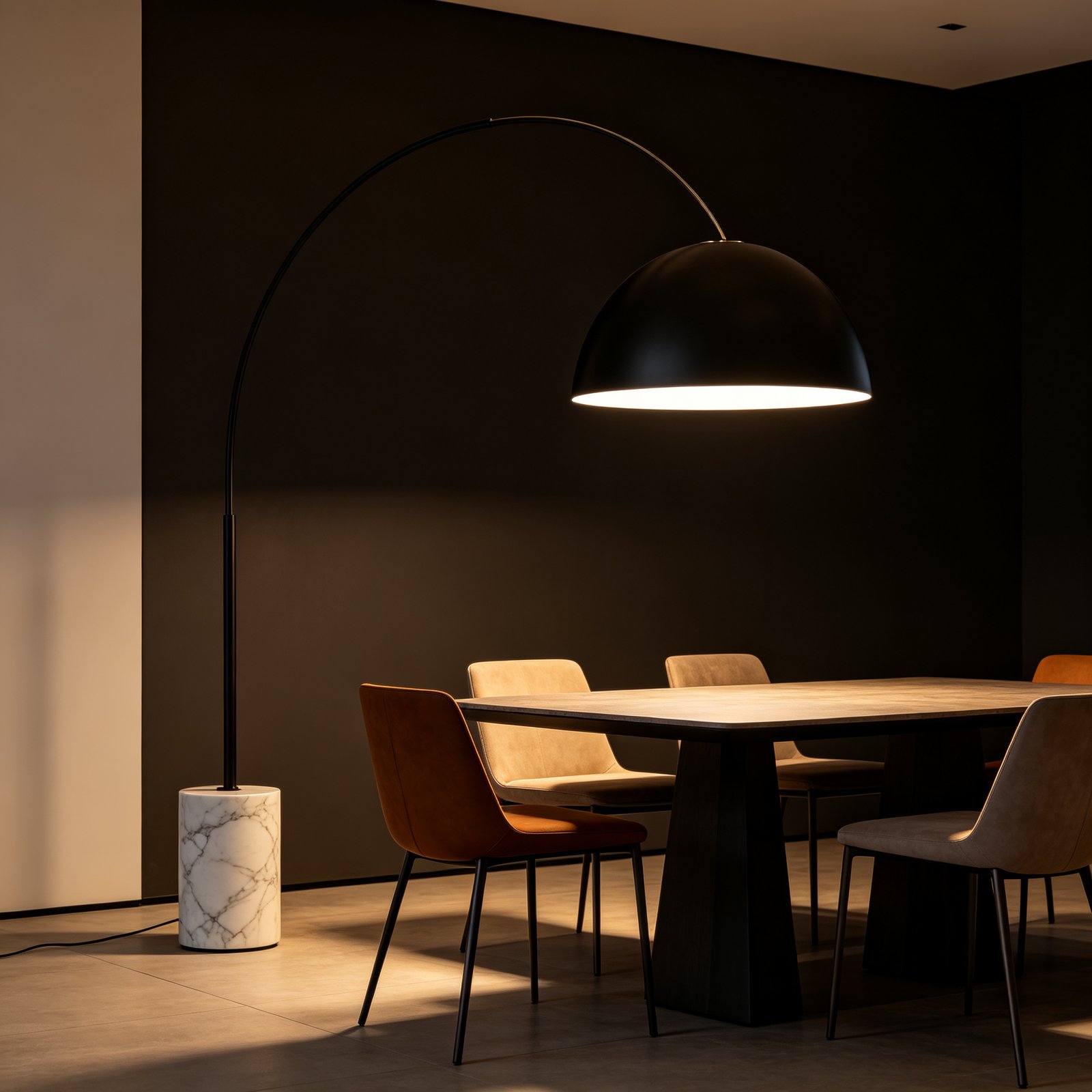

The Nova Floor Lamp is a study in architectural form and functional lighting. The sweeping arc arm is CNC bent from 1-inch diameter steel tubing with a radius tolerance of +/- 0.3mm, creating a graceful curve that positions the large dome shade precisely over seating or dining areas. The dome shade is deep-drawn from 18-gauge steel with a matte black powder-coat interior to maximize downward light reflection and minimize glare. The solid Carrara marble base provides substantial weight and stability, grounding the dramatic arc with natural elegance.

Technical Specifications

• Socket: E26 medium base, porcelain socket with aluminum shell, max 100W incandescent or 15W LED
• Shade: Deep-drawn 18-gauge (1.0mm) cold-rolled steel dome shade, 18 inch diameter, 10 inch height, matte black powder coat exterior, matte black interior for glare control
• Arc Arm: 1-inch (25.4mm) diameter 6063-T5 aluminum alloy tube, 1.5mm wall thickness, CNC bent to 48-inch radius arc, total arm length 72 inches, matte black powder coating (60-80 micron)
• Vertical Pole: 1-inch diameter steel tube, 0.75mm wall thickness, matte black powder coat
• Base: Solid Carrara marble cylinder, 10 inch diameter, 4 inch height, 18 lbs, polished bottom with felt pad, integrated cable management
• Switch: Inline on/off foot switch on cord, 3 feet from base
• Power: AC 120V 60Hz, 8-foot black PVC cord, polarized plug
• Dimensions: 72 inches overall height, 48 inch maximum reach, 10 inch base diameter
• Weight: 24 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)

Structural & Thermal Performance

The solid marble base provides an extremely low center of gravity (4 inches from surface), ensuring exceptional stability even with the arc fully extended. Tilt test on 15-degree incline passed without tipping. The steel dome shade acts as a passive heat sink, dissipating bulb heat through the 1.0mm wall and 18-inch diameter surface area. Measured shade exterior temperature with 60W incandescent bulb: 48C (ambient 25C), safe to touch. The CNC bending process maintains tube roundness within 2% deformation, ensuring structural integrity across the full arc. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+). The marble base is sealed with a penetrating stone sealer to prevent staining and is tested per ASTM C97 (absorption rate < 0.2%).

Construction & Compliance

Metal components are degreased, phosphate-treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The porcelain socket is rated for 250V/660W and tested per UL 496. The marble base is sourced from Carrara, Italy, and each piece has unique natural veining. Felt pad on base protects floors. Assembly required (arc arm attachment to vertical pole).

Bulb not included. Recommended: 100W equivalent warm white LED bulb. Marble base is natural stone and may have variations in veining and color.
