Nova RGB Arc Floor Lamp

RGB Arc Lighting with Precision Color Engineering

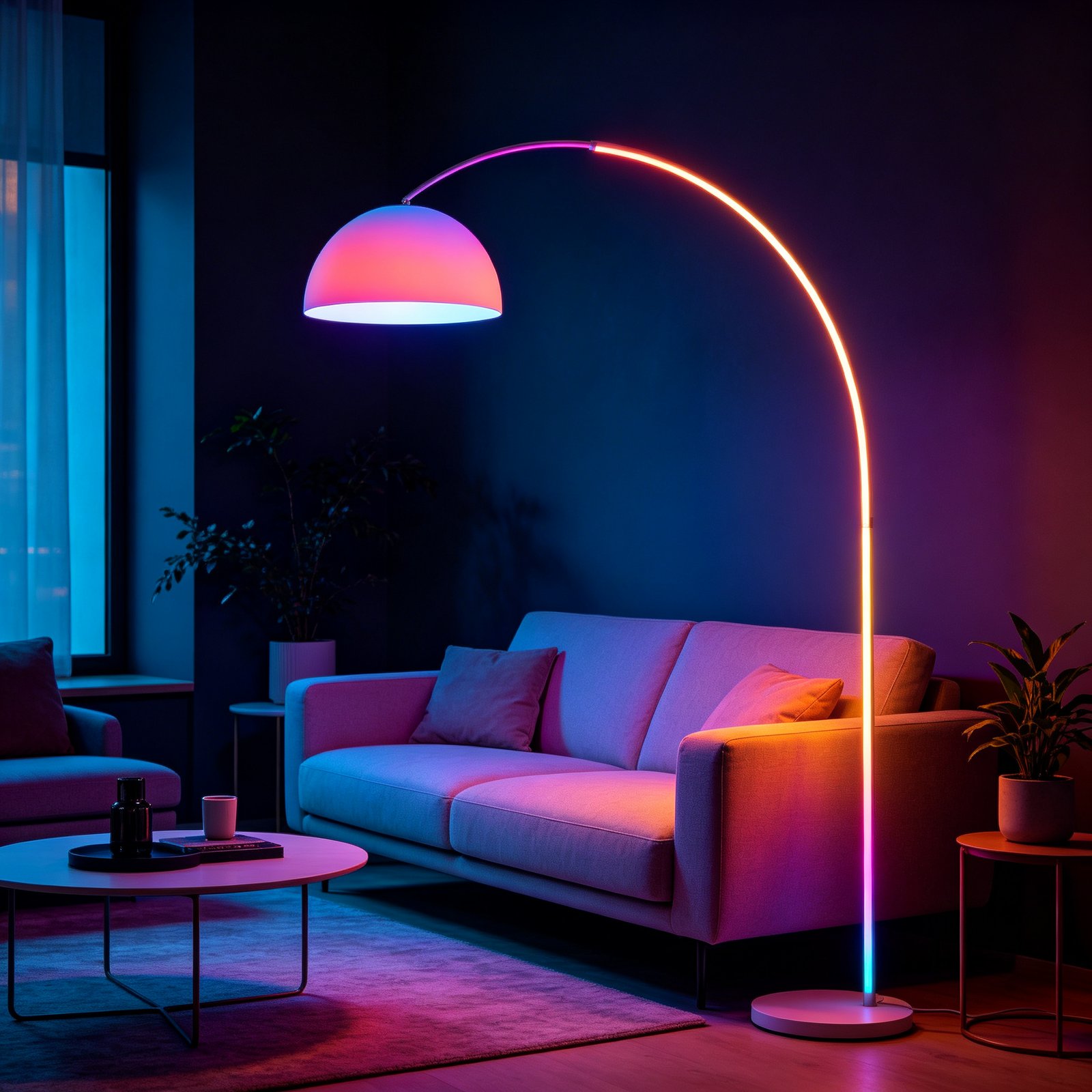

The Nova RGB Floor Lamp combines architectural arc form with full-spectrum RGB LED technology. The sweeping arc arm is CNC bent from 1-inch diameter steel tubing with a radius tolerance of +/- 0.3mm, positioning the large dome shade precisely over seating areas. The dome shade houses a 24W RGB+W LED module capable of producing 16 million colors with precise color rendering, controlled via 2.4GHz RF remote with 30-meter line-of-sight range.

Technical Specifications

• LED Module: 24W RGB+W (RGB + 2700K warm white) COB LED, 16 million colors, CRI 85+ (white mode), 1800 lumens at maximum white output
• Optics: Milk-white polycarbonate diffuser (92% transmittance) providing 120-degree beam angle for uniform downward illumination

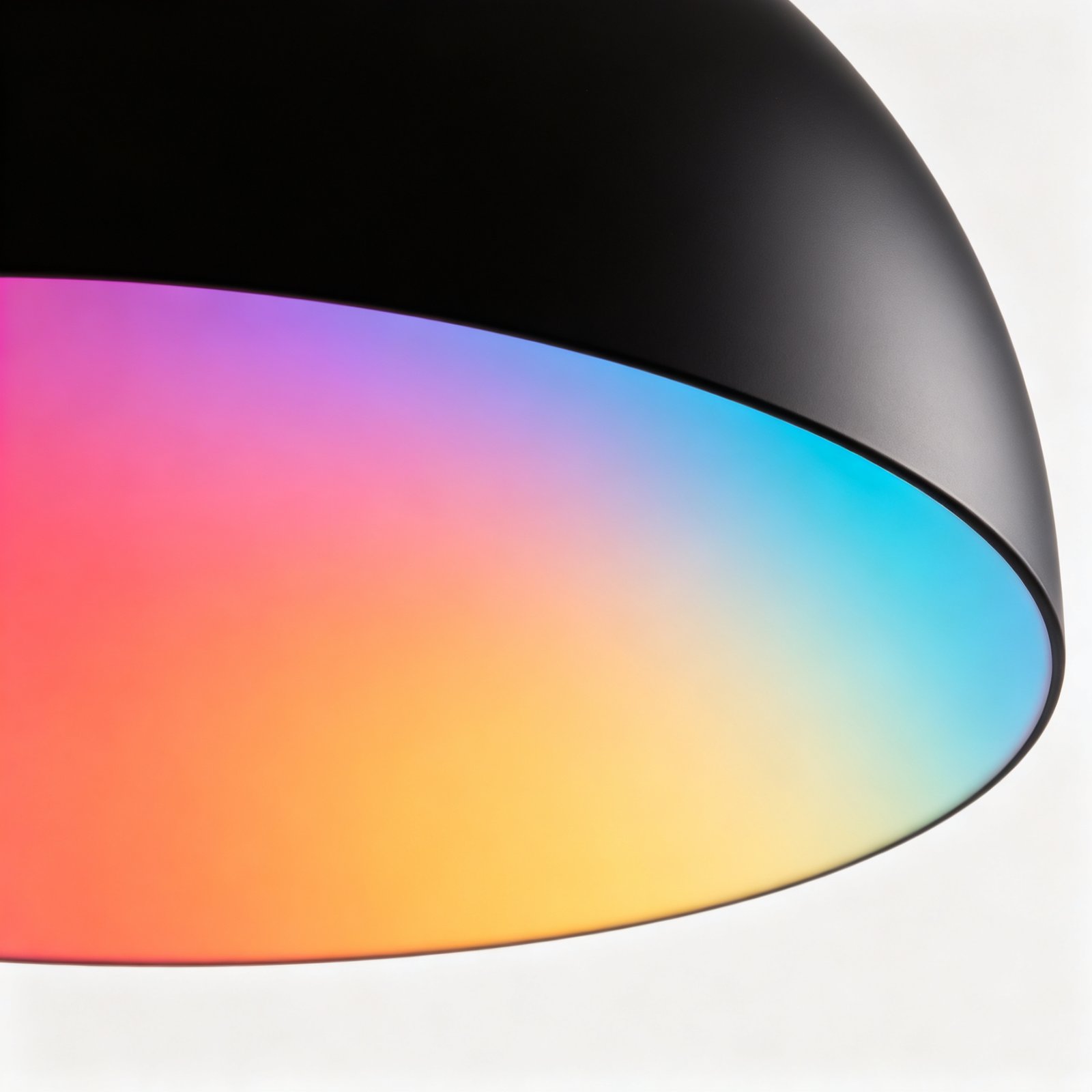

• Shade: Deep-drawn 18-gauge (1.0mm) cold-rolled steel dome shade, 18 inch diameter, 10 inch height, matte black powder coat exterior, matte white interior for color reflection
• Arc Arm: 1-inch (25.4mm) diameter 6063-T5 aluminum alloy tube, 1.5mm wall thickness, CNC bent to 48-inch radius arc, total arm length 72 inches, matte black powder coating (60-80 micron)
• Base: Round weighted steel base, 12 inch diameter, 1.5 inch height, 10 lbs, matte black powder coat, non-slip silicone pad, integrated LED driver and RF receiver
• Control: 2.4GHz RF remote control (30m range), color selection (16M colors), brightness (5%-100%), dynamic modes (fade, jump, music sync), timer (1h/2h/4h), white mode (2700K-6500K adjustable)
• Music Sync: Built-in microphone with adjustable sensitivity, 4 music-reactive modes (beat, melody, spectrum, gradient)
• Power: AC 100-240V 50/60Hz input, 8-foot black PVC cord, polarized plug
• Flicker: Constant current LED driver with PWM frequency > 3000Hz, flicker-free per IEEE 1789-2015
• Dimensions: 72 inches overall height, 48 inch maximum reach, 12 inch base diameter
• Weight: 16 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)
• LED Lifespan: 50,000 hours (L70)

Thermal & Structural Performance

The steel dome shade and aluminum arc arm act as a distributed passive heat sink, dissipating LED heat through the 1.0mm shade wall and 1.5mm arm wall. Measured LED junction temperature at maximum output: 72C (ambient 25C), within the 80C maximum rating. The weighted base provides a low center of gravity (4 inches from surface), ensuring stability; tilt test on 15-degree incline passed without tipping. The CNC bending process maintains tube roundness within 2% deformation. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+). The RF receiver has -90dBm sensitivity for reliable control through walls and furniture.

Construction & Compliance

Metal components are degreased, phosphate-treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility (RF remote and LED driver). RoHS compliant. The polycarbonate diffuser is UV-stabilized and flame-retardant (UL 94 V-0). The remote control uses CR2032 battery (included) with 12-month typical lifespan.

Remote control included (CR2032 battery included). Integrated LED, non-replaceable. Assembly required (arc arm attachment to base).
