Libra Dual-Head Table Lamp

Dual-Head Task Lighting with Precision Engineering

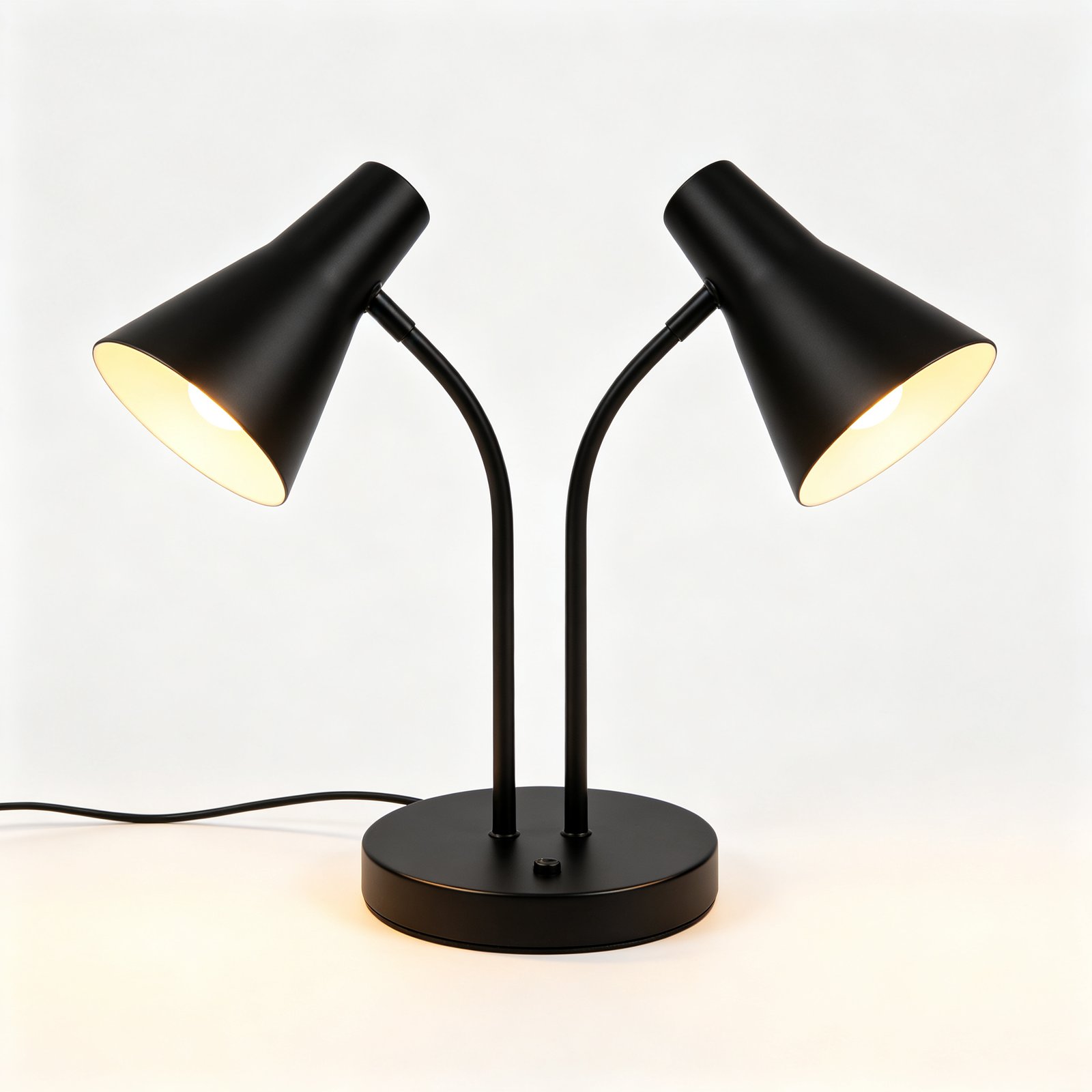

The Libra Table Lamp is engineered for focused task illumination with dual independently adjustable heads. Each conical shade is deep-drawn from 18-gauge steel with a matte black powder-coat interior to maximize downward light reflection and minimize glare. The flexible gooseneck arms allow 360-degree rotation and 90-degree vertical tilt, positioning light precisely where needed. The weighted round base provides stability on desks and nightstands while the dual on/off switches allow independent control of each head.

Technical Specifications

• Sockets: Two E26 medium base porcelain sockets, max 60W each (120W total)
• Shades: Two deep-drawn 18-gauge (1.0mm) cold-rolled steel conical shades, 5 inch diameter, 6 inch height, matte black powder coat exterior and interior for glare control
• Arms: Two flexible gooseneck arms (0.4 inch diameter, 12 inch length), 360-degree rotation, 90-degree vertical tilt, 10,000 cycle lifespan
• Base: Round weighted steel base, 7 inch diameter, 1.5 inch height, 3 lbs, matte black powder coat, non-slip silicone pad
• Switches: Two independent rotary on/off switches on base (one per head)
• Power: AC 120V 60Hz, 5-foot black PVC cord, polarized plug
• Dimensions: 18 inches overall height (arms extended), 7 inch base diameter, 24 inch maximum reach
• Weight: 4.5 lbs total
• Operating Temperature: 32F to 104F (0C to 40C)

Thermal & Structural Performance

The steel shades act as passive heat sinks, dissipating bulb heat through the 1.0mm wall and 5-inch diameter surface area. Measured shade exterior temperature with 60W incandescent bulb: 55C (ambient 25C), safe to touch after 3 minutes of cooling. The weighted base provides a low center of gravity (1.5 inches from surface), ensuring stability with both arms fully extended. Tilt test on 15-degree incline passed without tipping. The gooseneck arms maintain position with 2 lbs of holding force at the shade, rated for 10,000 adjustment cycles without loss of holding torque. The powder coating is cured at 180C for 20 minutes and tested per ASTM D3359 (cross-hatch adhesion, rating 4B+).

Construction & Compliance

Steel components are degreased, phosphate-treated, and powder-coated for corrosion resistance. Electrical components UL recognized. FCC certified for electromagnetic compatibility. RoHS compliant. The porcelain sockets are rated for 250V/660W and tested per UL 496. The polarized plug ensures proper grounding orientation. Silicone pad on base protects desk surfaces. The dual independent switches allow using one head for focused task light or both for broader illumination.

Bulbs not included. Recommended: 2x 60W equivalent warm white LED bulbs. Assembly required (arm attachment to base).
